Mifteya pir armancê ya Sideshifting

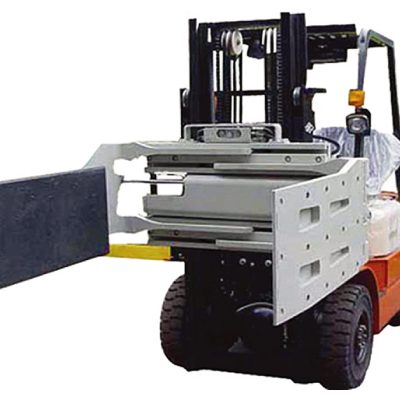

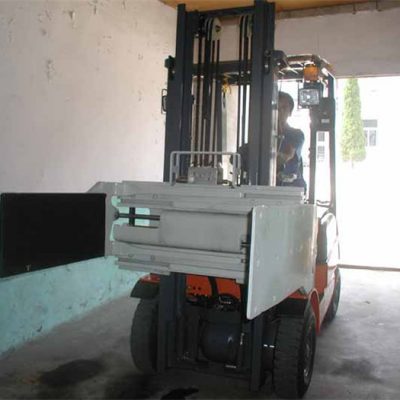

A sideshifting multi-purpose clamp is a type of forklift attachment that is used for handling and transporting a wide range of loads. It is designed to securely clamp onto the load and allow for easy and efficient handling and transportation. This type of clamp is commonly used in construction, manufacturing, and warehousing industries.

The sideshifting multi-purpose clamp works by clamping onto the load with hydraulic arms that can be adjusted to accommodate different sizes and shapes of loads. The hydraulic system is controlled by the operator, who can adjust the clamping pressure to ensure that the load is securely held in place. The clamp can also be shifted to the side, allowing the load to be easily positioned as needed.

One of the main advantages of the sideshifting multi-purpose clamp is its versatility. It can handle a wide range of loads, including pallets, drums, pipes, and more. It can also be easily attached and detached from the forklift, making it convenient for use in different material handling scenarios.

Another advantage of the sideshifting multi-purpose clamp is its ability to handle heavy loads. It allows for safe and efficient handling of heavy loads, reducing the risk of injury and damage to the load and the environment. The sideshifting feature also makes it easier to position the load in tight spaces or areas with limited access.

In conclusion, the sideshifting multi-purpose clamp is a useful forklift attachment for handling and transporting various types of loads. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.

Taybetmendiyên

---

· Pêşniyara çêkirina çarçoweya tîrêja aluminî ya T-beam durustkirî îsbat kiriye
· Qada xebitandinê ya berbiçav ji bo dîtinê.
· Valves hîdraulîk ya nûjenkirî ji bo leza mûzeya vebijarkî
· Zencîra çilmisîna top-ê ya ji bo jîna karûbarê dirêjkirî
· Sêwirana padsên gomayî yên Vulcanized, aborî.

Not

---

· Ji hilberîneriya Forklift re hebûna rastîn a forklift û pêvekan bistînin.
· Du qerta neftê ya zêdekirî û valahiya magnetîkî ya pêdivî ya li forklift.
· Rêzeya desta vekirî cîhê ku du tîra çek e.
· Pîvaza arm "C" pîvana cîhê ku ji bo xebata pratîkî tê xwestin e, ji pîvaza rastîn a destikê cuda ye
· Ji kerema xwe bi firotanên ji HUAMAI re têkiliyê daynin

Vîdyo

---

Berfirehkirin

---

Awa	Kapasîteya @Load Center / mm	Sinif	Rêzeya vekirî / mm	Armê Height A / mm	Hêza B / mm	Width of Frame D / mm	Pîvaza / Nêzikê C / mm	Bi tevahî Hefta H / mm	Wext / kg	Dûre / mm mm bandor
MCS15D- 001A	1400@ 500	II	420-1570	455	955	865	55	665	465	175
MCS15D- 002A	1400@ 500	II	520-1720	415	1220	865	70	665	485	195
MCS15D- 003A	1900@ 500	II	520-1750	600	1015	940	75	665	475	175
MCS15D- 004A	1900@ 500	II	560-1760	455	955	940	55	665	475	175
MCS15D- 005A	1900@ 500	II	520-1720	415	1220	940	70	665	495	195
MCS15D- 006A	1900@ 500	II	560-1800	460	750	940	55	665	356	180
MCS15D- 007A	1900@ 500	II	550-1800	460	905	940	55	665	386	180
MCS15D- 008B	2700@ 500	III	600-1950	455	750	1015	60	730	484	215
MCS15D- 009A	2700@ 500	II	600-1900	455	955	1015	60	730	542	205
MCS15D- 009B	2700@ 500	III	600-1900	455	955	1015	60	730	543	215
MCS15D- 010A	2700@ 500	II	595-1940	455	1160	1015	65	730	603	205
MCS15D- 010B	2700@ 500	III	595-1940	455	1160	1015	65	730	604	215

Flow & Pressure Hydraulic

---

Cins	Min. Kûrahiya Hîdraulîk (L / min)	Rec. Kûrahiya Hîdraulîk (L / min)	Max Kûrahiya Hîdraulîk (L / min)	Min. Pressure Hydraulic (Bar)	Max Pressure Hydraulic (Bar)
MCS20D	15	25	25	35	160
MCS30D	15	40	40	35	160

Vebijarkên

---

· Dirêjbûna lingê dirêj û dirêjbûna mezin
· Cureya tevgera serbixwe ya milê çep û rastê
Mekanîzmaya rawestandina rotînê ya 180 pileyî

Bikaranînî

---

Bi bandor û aborî hema hema her cûre kartonek kaxezê, kartolê dar, kartolên metal û hilberên balî, birêve dibin. Tevlî tûtinê, nûçeyê, fîda kîmyewî, komxebatê û portê. Karbidest û aboriya bilind e ku meriv pê nekeve platformê xebatê

Kîtekîtên Bilez

---

Cihê Origin: Fujian, Chinaîn (Mainland)
Navê Brand: HUAMAI
Navê Hilbera: Kembera pir armancê ya Sideshifting
Cure: MCS15D- 001A
Beşa Mounting: II
Rêzeya vekirinê: 420-1570mm
Germ Hebûn A / mm: 455 mm
Maweya B / mm: 955 mm
Width of Frame D / mm: 47 mm
Arm Thick-ness C / mm: 55mm
Dirêjiya Hilbera H / mm: 665 mm
Parzûna Kêrhatî (mm): 175 mm

---
