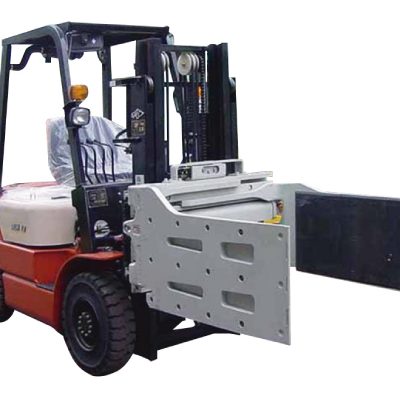

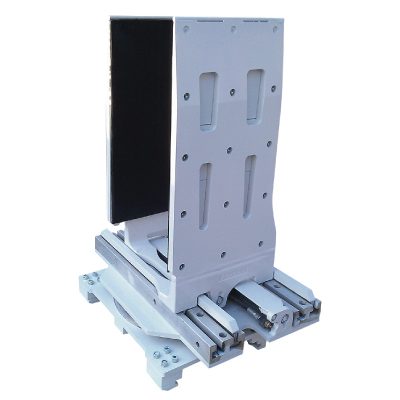

Hilberên kaxezê pêveka pêlavê Forklift

Taybetmendiyên

---

1.Proven durable f-beam arm aluminum frame construction.

2.Regenerative hydraulic valving for optimal arm speed.

3.Superior arm-slide bearing for extended service life.

4.Vulcanized rubber pads design, economically.

5.Excellent driver visibility.

Berçavkirin

---

Capacity @ Load Center (kg @ mm)	Order No.	Rêzika vekirinê (mm)	Hînbûn Sinif	Arm Height A(mm)	Arm Length B(mm)	Frame Width D(mm)	Vertical Center of Gravity VCG (mm)	Pîvan (kg)	Effective Thickness ET (mm)	Horizontal Center of Gravity HCG (mm)
1150@600	CCS15D-001A	380-1530	II	1220	1220	940	320	650	127	439
1600@510	CCS20D-002A	560-1930	II	1200	1065	1040	325	644	127	422
1600@535	CCS20D-003A	560-1930	II	1220	1170	1040	325	651	127	427
1600@585	CCS20D-004A	560-1930	II	1220	1220	1040	315	696	127	447
1600@610	CCS20D-005A	560-1930	II	1220	1220	1040	320	705	127	450
1400@710	CCS20D-006A	560-1930	II	1220	1420	1040	315	770	127	483
1450@685	CCS20D-007A	560-1930	II	1525	1370	1040	380	824	127	485
2300@510	CCS30D-008B	535-1850	III	1525	1015	1015	450	899	152	485
2300@535	CCS30D-009B	535-1850	III	1525	1066	1015	450	906	152	485

Not:

Kapasîteya rastîn a dorhêl û pêvekên ji hilberînerê Forklift bistînin.

Two sets additional oil circuit and magnetic valve required on forklift.

Rêzeya desta vekirî cîhê di navbera tixûbên du destan e.

All the carton clamps are equipped with four post pressure regulating valves.

Ji kerema xwe ji firotanên ji HUAMAI re têkilî bikin

Flow & Pressure Hydraulic

Cins	Min.Hewşa Hîdraulîk (L / min)	Rec. Kûrahiya Hîdraulîk (L / min)	Flûma Max.Hydraulîk (L / min)	Min. Pressure Hydraulic (Bar)	Max Pressure Hydraulic (Bar)
CCS20D	15	25	25	35	160
CCS30D	15	40	40	35	160

Vebijarkên

Four-position pressure regulator valve

Pad height extension

Heightening load backrest

Bikaranînî

Carton Clamps are designed for the warehousing ,beverage, home-appliance and electronics industries, carton clamps allow palletless handling, and save money on pallet purchasing, maintenance. Also improve warehouse space utilization.
