Pelgeya kaxezê dikare bandorek, ewlehî û ti zirarê bigihîne pêlekê û stûyê rollê, û pişka guvaştî ku 360 derece bi berdewamî bizivire, bi berfirehî li kaxez, karton, pakkirin, çapkirin, port, û pîşesaziyên din ên cûrbecûr karanîna kaxezê kaxezê tête bikar anîn. bê palet.
Kapasîteya (kg) | Ketelog | Class Mounting | Roll Range (mm) | Bişkoka Zûtirîn (mm) | Dirêjahiya Armanê Kurt (mm) | Bihêziya Arm (mm) | Vertical Center of Gravity (mm) | Navenda Horizontal a Gravity (mm) | Ziraviya bandor (mm) | Pîvan (kg) |
1300 | SLZ-A001 | 2 | 330-1150 | 685 | 515 | 45 | 330 | 216 | 138 | 345 |
1200 | SLZ-A002 | 2 | 410-1300 | 790 | 580 | 45 | 330 | 222 | 138 | 345 |
2000 | SLZ-A / B004 | 2/3 | 250-1300 | 824 | 570 | 45 | 345 | 295/330 | 210/250 | 730/748 |
2000 | SLZ-A / B005 | 2/3 | 630-1300 | 824 | 570 | 45 | 345 | 290/325 | 210/250 | 720/738 |
2000 | SLZ-A / B006 | 2/3 | 350-1600 | 956 | 774 | 90 | 345 | 310/320 | 210/250 | 838/848 |
2000 | SLZ-A / B007 | 2/3 | 630-1600 | 956 | 774 | 90 | 345 | 308/318 | 210/250 | 826/834 |
1700 | SLZ-B008 | 3 | 680-1830 | 1130 | 930 | 112 | 345 | 458 | 210/250 | 950 |
1700 | SLZ-B009 | 3 | 380-1830 | 1130 | 930 | 112 | 345 | 460 | 210/250 | 965 |
2700 | SLZ-B / C010 | 3/4 | 520-1300 | 850 | 590 | 85 | 445 | 270/290 | 210/250 | 820/840 |
2700 | SLZ-B / C011 | 3/4 | 250-1300 | 850 | 590 | 85 | 445 | 270/290 | 210/250 | 835/855 |
2700 | SLZ-B / C012 | 3/4 | 560-1520 | 970 | 690 | 70 | 445 | 305/322 | 210/250 | 880/900 |
2700 | SLZ-B / C013 | 3/4 | 255-1520 | 970 | 690 | 70 | 445 | 305/322 | 210/250 | 898/918 |
2300 | SLZ-B / C014 | 3/4 | 680-1830 | 1125 | 825 | 88 | 450 | 352/372 | 210/250 | 995/1016 |
2300 | SLZ-B / C015 | 3/4 | 380-1830 | 1125 | 825 | 88 | 450 | 352/372 | 210/250 | 1018/1040 |
Not
1) Ji kerema xwe ji fabrîkaya forklift re kapasîteya bêkêl a tevahî ya dorpêçê / pêvekirinê bigirin
2) Li gorî hewcedariyên bikarhêneran, splingeyan peyda bikin ku li gorî pêdiviyên cihêreng ên pêkanîna Roll biguncînin
3) Forkliftek pêdivî ye ku 1 setên rûnê yên din zêde bike.
Vîdyo
Kîtekîtên Bilez
Cihê Origin: Fujian, Chinaîn (Mainland)
Navê Brand: HUAMAI
Navê hilberê: kaxezê kaxezê pêlavê swing
Kapasîteya barkirinê: 1000 ~ 4500 kg
Klîpa bilindkirinê: 2 ~ 5
Rêzeya vekirinê: 200 ~ 1830 mm
Bi dirêjiya milê dirêj: 685 ~ 1130 mm
Dirêjahiya milê kurt: 515 ~ 930 mm
Dirêjiya arm: 45 ~ 112 mm
Pîvaza berbiçav: 138 ~ 250 mm
Weight: 345 ~ 1040 kg

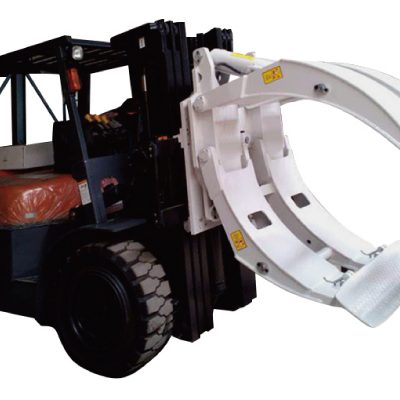

A forklift swing frame paper roll clamp is a type of forklift attachment used for handling and transporting large rolls of paper. The clamp attaches to the forklift and holds the paper rolls in place, allowing the operator to easily pick up, move, and place the rolls.
The swing frame paper roll clamp consists of a frame that attaches to the forklift and a clamp mechanism that holds the rolls in place. The frame is designed to swing back and forth, allowing the operator to adjust the position of the rolls for easier handling. The clamp mechanism is designed to securely hold the rolls in place, reducing the risk of injury and damage to the load and the environment.
One of the main advantages of the forklift swing frame paper roll clamp is its versatility. It can handle a wide range of large rolls of paper, making it a convenient accessory for a variety of material handling tasks. The swing frame also makes it easier to transport the rolls, reducing the risk of injury to the operator and other workers.
Another advantage of the forklift swing frame paper roll clamp is its efficiency. The clamp makes it easier to handle and transport the rolls, reducing the time and effort required to complete the task. This makes it more cost-effective and time-efficient, saving companies time and money in the long run.
In conclusion, the forklift swing frame paper roll clamp is a useful tool for handling and transporting large rolls of paper. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.
