Danasîna hilberê
1. Applications:

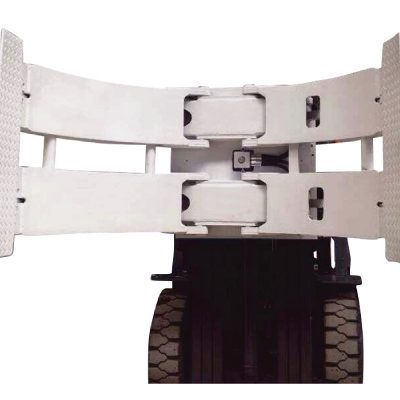

Forklift Paper Roll Clamp,as one kind of material handling equipment meeting the needs of industries from stevedoring to printing for damage free roll handling with maximum efficiency.
2. Features:
-Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
-Continuous 360 degree rotation,any angle position of lock function,revolving positing 90degree or 180 degree.
-Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation.
3. Specifications of Paper Roll Clamp material handling equipment
Kanîn | Nanik | Ketelog | Awa | Hînbûn | Hînbûn | Dirêj | Nizm | Dirêj | Pîvan | Tesîrane | Asumane |
Dirêjahî | Order No. | Sinif | Qozî | Pîl | Pîl | Pîl | Qewîtî | Navenda | |||
Qewîtî | Dirêjî | Qewîtî | Qaweta kişanê | ||||||||
(kg) | (mm) | A (mm) | C (mm) | B (mm) | (kg) | ET (mm) | CGH (mm) | ||||
1200 | 410-1300 | RCF15F-013A | YEK | II | 0 ° | 790 | 580 | 330 | 354 | 135 | 221 |
1300 | 330-1150 | RCF15F-014A | YEK | II | 0 ° | 685 | 515 | 330 | 343 | 135 | 216 |
1100 | 450-1500 | RCF15F-015A | YEK | II | 1.5° | 890 | 680 | 330 | 435 | 150 | 270 |
1000 | 560-1600 | RCF15F-016A | YEK | II | 1.5° | 940 | 730 | 330 | 455 | 150 | 290 |
2000 | 250-1300 | RCP20F-001A | YEK | II | 0 ° | 825 | 570 | 45 | 677 | 197 | 287 |
2000 | 250-1300 | RCP20F-001B | B | III | 0 ° | 825 | 570 | 45 | 690 | 237 | 325 |
2000 | 630-1300 | RCF20F-002A | YEK | II | 0 ° | 825 | 570 | 45 | 667 | 197 | 282 |
2000 | 630-1300 | RCF20F-002B | YEK | III | 0 ° | 825 | 570 | 45 | 681 | 237 | 320 |
2000 | 250-1500 | RCP20F-003A | B | II | 0 ° | 955 | 775 | 95 | 751 | 197 | 283 |
2000 | 250-1500 | RCP20F-003B | B | III | 0 ° | 955 | 775 | 95 | 765 | 237 | 307 |
2000 | 530-1500 | RCF20F-004A | YEK | II | 0 ° | 955 | 775 | 95 | 744 | 197 | 280 |
2000 | 530-1500 | RCF20F-004B | YEK | III | 0 ° | 955 | 775 | 95 | 758 | 237 | 304 |
2000 | 630-1600 | RCF20F-005A / B | YEK | II / III | 0 ° | 955 | 775 | 95 | 755 | 183/216 | 301 |
2000 | 350-1600 | RCP20F-006A / B | B | II / III | 0 ° | 955 | 775 | 95 | 765 | 183/216 | 304 |
1700 | 680-1830 | RCF20F-007A | YEK | III | 0 ° | 1130 | 930 | 115 | 880 | 239 | 445 |
1700 | 380-1830 | RCP20F-008B | B | III | 0 ° | 1130 | 930 | 115 | 886 | 239 | 445 |
2700 | 330-1350 | RCP30F-009B | B | III | 0 ° | 850 | 570 | 65 | 759 | 198 | 272 |
2700 | 590-1350 | RCF30F-012B | YEK | III | 0 ° | 850 | 570 | 65 | 752 | 198 | 272 |
2700 | 250-1520 | RCP30F-011B | B | III | 0 ° | 955 | 685 | 50 | 830 | 198 | 307 |
2700 | 560-1520 | RCF30F-010B | YEK | III | 0 ° | 955 | 685 | 50 | 823 | 198 | 307 |
2000 | 250-1300 | RCS20D-001A | C | II | 0 ° | 825 | 560 | 45 | 717 | 197 | 269 |
2000 | 250-1300 | RCS20D-001B | C | III | 0 ° | 825 | 560 | 45 | 731 | 237 | 307 |
2700 | 250-1300 | RCS30D-002A | C | II | 0 ° | 845 | 570 | 70 | 854 | 203 | 277 |
2700 | 250-1300 | RCS30S-002B | C | III | 0 ° | 845 | 570 | 70 | 858 | 198 | 272 |
3500 | 250-1520 | RCP35F-001B | B | III | 0 ° | 1000 | 670 | 65 | 1190 | 218 | 320 |
3500 | 250-1520 | RCP35F-001C | B | IV | 0 ° | 1000 | 670 | 65 | 1199 | 218 | 320 |
3500 | 610-1520 | RCF35F-002B | B | III | 0 ° | 1000 | 670 | 65 | 1180 | 218 | 320 |
3500 | 610-1520 | RCF35F-002C | B | IV | 0 ° | 1000 | 670 | 65 | 1190 | 218 | 320 |
2700 | 360-1830 | RCP35F-003B | B | III | 0 ° | 1165 | 810 | 65 | 1289 | 218 | 353 |
2700 | 360-1830 | RCP35F-003C | B | IV | 0 ° | 1165 | 810 | 65 | 1298 | 218 | 353 |
2700 | 635-1830 | RCF35F-004B | YEK | III | 0 ° | 1165 | 810 | 65 | 1280 | 218 | 353 |
2700 | 635-1830 | RCF35F-004C | YEK | IV | 0 ° | 1165 | 810 | 65 | 1289 | 218 | 353 |
4000 | 250-1300 | RCP35F-007B | B | III | 0 ° | 875 | 575 | 65 | 1146 | 218 | 295 |
4000 | 250-1300 | RCP35F-007C | B | IV | 0 ° | 875 | 575 | 65 | 1155 | 218 | 295 |
4000 | 560-1300 | RCF35F-008B | YEK | III | 0 ° | 875 | 575 | 65 | 1137 | 218 | 295 |
4000 | 560-1300 | RCF35F-008C | YEK | IV | 0 ° | 875 | 575 | 65 | 1146 | 218 | 295 |
4100 | 250-1520 | RCP45F-001C | B | IV | 0 ° | 965 | 680 | 85 | 1294 | 198 | 310 |
4100 | 530-1520 | RCF45F-002C | YEK | IV | 0 ° | 965 | 680 | 85 | 1285 | 198 | 310 |
3400 | 360-1830 | RCP45F-003C | B | IV | 0 ° | 1105 | 815 | 85 | 1385 | 198 | 338 |
3400 | 660-1830 | RCF45F-004C | YEK | IV | 0 ° | 1105 | 815 | 85 | 1376 | 198 | 338 |
2700 | 450-2200 | RCP45F-005C | B | IV | 0 ° | 1305 | 915 | 85 | 1490 | 198 | 380 |
2700 | 850-2200 | RCF45F-006C | YEK | IV | 0 ° | 1305 | 915 | 85 | 1480 | 198 | 380 |
4500 | 250-1300 | RCP45F-007C | B | IV | 0 ° | 900 | 565 | 85 | 1242 | 198 | 284 |
4500 | 560-1300 | RCF45F-008C | YEK | IV | 0 ° | 900 | 565 | 85 | 1233 | 198 | 284 |
4. Options and Accessories:
Custom designed opening ranges.
Positioned short arm or fixed short arm.
Split long arm.
Special pads
Berhemên me
Whyima me wekî dabînkerê pêbawer hilbijêrin an jî wekî firoşgerek herêmî bi me re bixebitin?
1. Tîmek teknîkî ya xerîdar, karûbarek bêtir profesyonel
HUAMAI ji tîmek endamên ku bi kamyonên barkêş ên Ewropî û pêvekên wê re bi salan xwedî ezmûn in pêk tê.
2. Hilbera hilbera fireh, sêwirana xwerû, çareseriya tevahî peyda dikin
HUAMAI bi lez û bez ket nav pargîdaniyek berbiçav a ku di hilberandina hûrgelên hîdraulîk û mekanîkî de tê de pispor e. Kategoriyên sereke yên pêvekên hîdroulîk ên celebên zivirandî, celebek desta ya qulikê, celeb-alîgir / hinged, celebê armanca taybetî û yên din.
3. Piştgiriya pêşîn, heke ajansa / Dealer
Ger hûn firoşkarek herêmî ne, hûn dikarin piştgirîya polîtîkaya nûnerê HUAMAI-yê bi dest bixin, di nav de dema radestkirina bilez, bihayê pêşbaziyê û piştgirîya aksesûar, hwd.
4. Kargeha xwe, bihayê pêşbaziyê
Kargeha me deverek 10,000 metre çargavan pêk tê, bi tevahî alavên çêker û avahiyên nûjen vekirî. Hilberîna pîvanê û bê navber dê lêçûnê kirîna xilas nake.
5. tomar û dengê firotanê ji mişterî me, ku performansa meya baş îsbat dike
Kîtekîtên Bilez
Cihê Origin: Fujian, Chinaîn (Mainland)
Navê Brand: HUAMAI
Model Number: HUAMAI-Hydraulic-1.7-4.5T Paper Roll Clamp
Kapasîteyê: 1700-4500kg
Roll range: 250-1830mm
Mounting class: II/III/IV
Long arm length: 825-1305mm
Short arm length: 560-915mm
Long arm thickness: 45-115mm
Weight: 677-1490kg
Dermankirina erdê: Pandin
Parçeyên sereke: Klasa cîhanî
Garantî: 12mms an 2000 demjimêrk dixebitin
